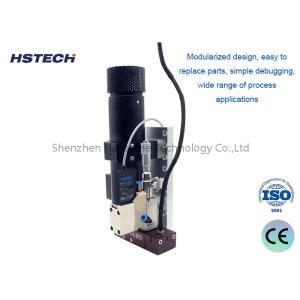

Compatible with Various Applications and Motion Platforms PUR Jetting Valve HS-PF-PUR30CC-A/B
300CC PUR Jetting Valve
1.The PUR injection valve consists of a drum heating module, a pressurized cap module, a nozzle heating module, a flow path module, a valve body module and a heat dissipation module.
2.The barrel heating module carries the barrel as well as the one-stage heating with controllable temperature. The initial heating of the gel is completed.
3.The pressurized cap module seals and pressurizes the drum and controls the output pressure through the controller.
Jet Valve Controller
1. The touch screen controls the piezoelectric injection valve and dispensing system, supports MES communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3.Nozzle heating device: The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
Specification
| Model | HS-PF-PUR300CC-A/B |
| Size (L*W*H) | 116MM*96MM*218MM |
| Weight | About 1.5kg |
| Material of heat insulation block | PEEK |
| Temperature measuring method | PT100 |
| Barrel Heating temperature | ≤160℃ |
| Syringe air pressure | 0~2.0Kpa |
| Glue dispensing precision | ＞98% |
| Minimum glue line width | 0.5MM |
| Viscosity range | 1~100000Cps |
| Jet speed | 200 points/sec |
| Valve material | Super Hard Stainless Steel |
| Nozzle material | Tungsten Steel |
| Heating voltage | 220V |
| Seat heating temperature | ≤250℃ |
| Valve air pressure | 6.0~7.0Kpa |
| Glue Dispensing Volume | 0.3nl |
| Diameter of the most glue dispensing | 0.4MM |
| Power source | Dry compressed gas |
| Applicable liquid | Most hot melt adhesives, silicone, red glue, epoxy resin, black glue, etc. |
Advantages
1. The barrel heating is suitable for 30cc, 100cc, 300cc hot melt adhesive with different volume.
2. Modularized design, easy to replace parts, simple debugging, wide range of process applications.
3. Spray volume can be accurate to 0.3nL, spray adhesive spot consistency accuracy of up to 98%.
4. Minimum 0.17mm line width, minimum 0.15mm spot diameters of hot melt glue spraying process can be realized.
5. Can match any motion platform on the market.
Application Field
SMT/FPC/PCB,Assembly, flat panel display assembly, semiconductor packaging, LED industry, medical equipment industry,Non-marking lingerie industry.
|
|
