Heating Control PCB Soldering Robot Machine 0.6 To 1.0mm Solder Wire Compatible 5Axis Automatic Soldering Machine
Introduction
This automatic soldering machine is single rotation soldering head double Y platform machine, movring range 500x300x300x100mm, X axis moving range also can extend to 600mm, the machine is used in electronic manufactring factory, for replacing the traditional manual soldering process.
It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process, also widely used in PCB soldering wire, charger plug,solering,connector plug, DC terminal,LED strip light soldering and other fields.
Specification
| Model | HS-S5331R | HS-S6331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm | 600*300*300*100mm |
| R axis | 360degree |
| X/Y/Z moving speed | max 300mm/s |

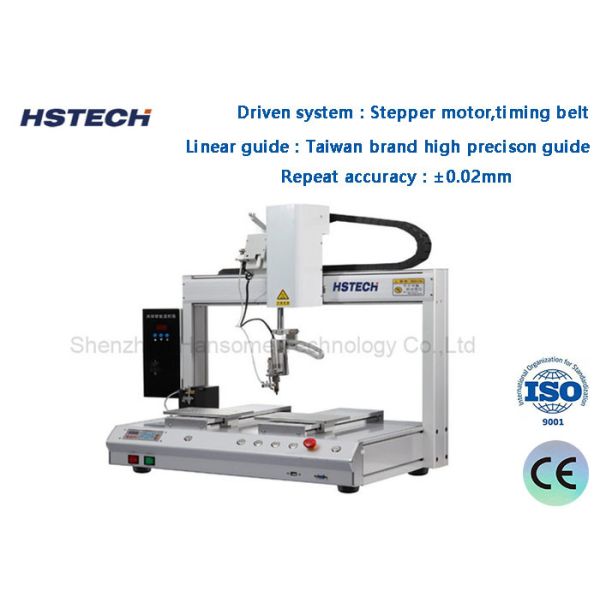

| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File storage space | Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 65kg | 70kg |
| Machine dimension | 715*585*800mm | 815*685*800mm |
Features
1, Applicable for different kinds of products. soldering temperature can be set freely ( Different temperature can be set for each solder joint ).
2. The soldering iron unit can be multi-directionally adjusted , which can protect the PCB and components from damage.
3, Axis working, double working platform, with R rotation axis.
4, Support many welding method, point welding, drag welding,and other functions.
5, Teach pandent programing, can save max 99 groups program.
6, Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points).
7, Numerically controlled temperature ( static air condition : +/- 1C ).
8.In the soldering process, the solder tip has rapid heat recovery and a long life span.
9, Stepper motor and timing belt control, equipped with Taiwan brand linear guide at the same time.
About Packaging
|
|
Heating Control PCB Soldering Robot Machine 0.6 To 1.0mm Solder Wire Compatible 5Axis Automatic Soldering Machine Images
|
